Groundwater exploration, geotechnical investigation, monitoring of dams and dikes, environmental studies, geological survey, mineral prospecting, archaeology, detecting of cavities and buried objects, underwater, marine, borehole and cross-hole measurements.

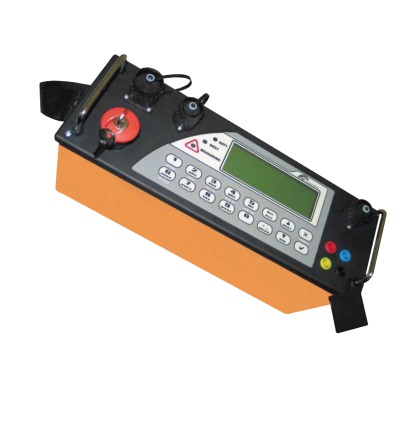

ARES II represents a well equipped resistivity and IP imaging system. Its advantages can be applied especially for large 2D and 3D surveys (operating up to 65,000 electrodes), for continuous survey from water level and for programable monitoring of structures. Its variability, easy field operation (without PC), feeding from a standard 12 V battery or from a generator, rich support of standard and special electrode arrays and compatibility with widespread interpretation software makes ARES useful tool for working groups and research teams.
850 W - 2000 Vp-p - 5 A Transmitter for all Multi-Electrode and Manual Modes
10-channel Receiver with up to 20 Adjustable IP Windows
2D/3D Resistivity & IP Tomography VES, RP, SP Measurements Continuous or Timed Survey

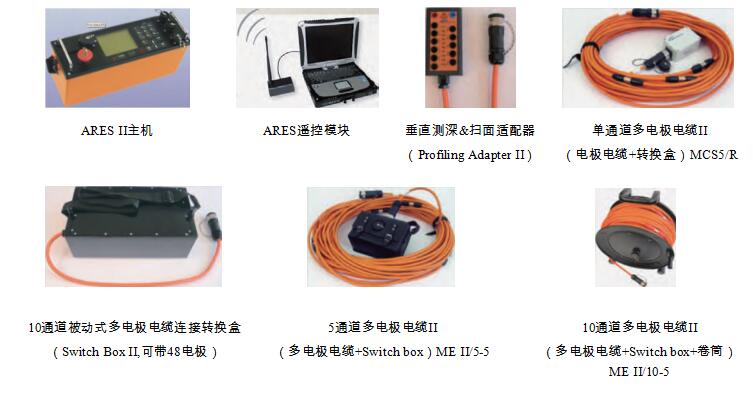

Active Multi-Electrode Cables Passive Cables with Switch Box Roll-Along Possibility
Easy Operation with Graphical Screen
Data Download via USB Port or Flash Disk
Supply from 12 V Battery or AC/DC Convertor
GPS Connectivity
