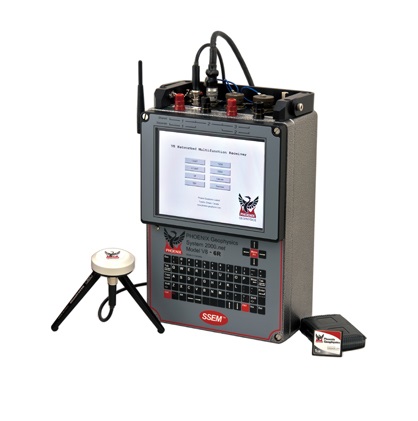

The V8 is the eighth generation of receiver technology developed by Phoenix since 1975.
The V8 builds upon many of the most attractive features of the highly successful Phoenix V5, V6A, and System 2000, including permanent GPS synchronization and light weight. The full-size ASCII keyboard and full-size, full-color, sunlight-readable display give the operator hands-on control of the entire data acquisition process for all the most common geophysical techniques both controlled source techniques and natural source techniques (AMT, MT).
The V8 has 3 magnetic channels and 3 electric channels. The magnetic channels can be assigned either to standard magnetic sensors or to TDEM sensors. The V8 can operate in stand-alone mode (usually for AMT and MT). In addition, it can serve as the hub of a local network of auxiliary 3-channel (3E) data acquisition units, which communicate with the V8 by wireless or optional cable.
All recording units are permanently synchronized to GPS time and are optimized to operate with transmitters similarly synchronized to GPS time.
No cable links are required between the networked recording units, or between receivers and transmitter.
MT, AMT: Magnetotellurics with remote reference
CSAMT: Controlled Source Audio MT
IP: Induced Polarization: Time and Frequency Domain, Phase and Spectral Induced Polarization
TDEM, FDEM: All common Time and Frequency Domain Electromagnetics functions
◇ Number of Channels : 3 TDEM 3 Magnetic 3 Electric Unlimited number of optional 3-channel auxiliary units (RXU-3)
◇ Frequency range : 10,000Hz to 0.00005Hz (20,000 seconds)
◇ ADC : One per channel 24 bits, 96,000 samples/second (main channels)
◇ Weight : 7kg
◇ Keyboard : Full ASCII Display 640 x 480 full-colour sunlight-readable TFT-LCD with backlight and power-save indicator
◇ Connectors : Multi-pin, military-style connectors for sensor input, GPS, battery and ground connectors Four panel-mounted binding posts for electric field inputs (AMT, MT)
◇ Input power : 12V DC
◇ Power consumption : 15 watts approx.
◇ Processor : DM&P Vortex86SX and auxiliary processors
◇ Environmental Operating : —20 deg.C to +50 deg.C
